How to Select the Right External Power Adapter
Sep 29,2023, 195
Whether you really want an outside power adapter for another item or as a swap for a current item, finding the right one can be interesting. There are a couple of subtleties that are vital to consider while choosing an outer power adapter, including its power and voltage determinations, which whenever chose suitably will forestall specific issues that can prompt item disappointment.

How would you pick an outer power adapter? This guide covers a few boundaries to consider while choosing the right outer power adapter for your gadget or framework.

What Are Outer Power Adapters?
Outer power adapters are a sort of power supply that fitting into a wall power source and convert rotating current (AC) to an immediate current (DC) that powers specific electronic gadgets. They may likewise be called AC adapters, AC-DC adapters, AC-DC converters, DC power supplies, outside adapter power supplies, or essentially power adapters.

Outside power adapters are utilized in different applications, from complex clinical gadgets like circulatory siphons, ventilators, dialysis gear, and telemedicine trucks, to business or modern assembling hardware like standardized tag scanners, gauging scales, and sequential construction system screens, to purchaser gadgets like PCs, screens and printers.

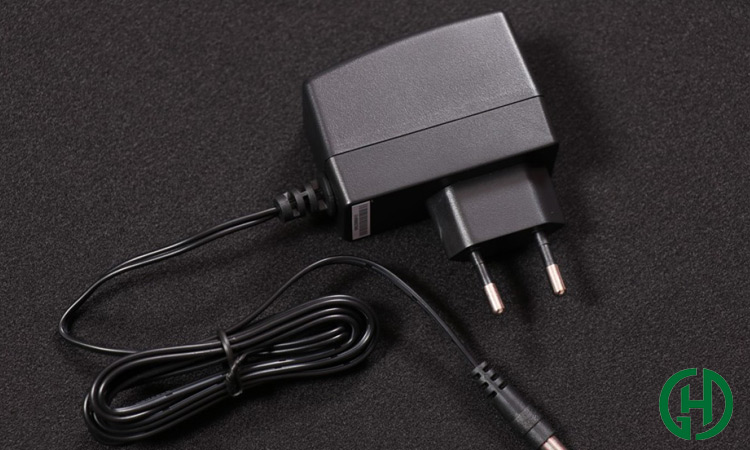

You can consider an outside power adapter a "black box," with the air conditioner input on one side and the DC yield on the opposite side. It is commonly presented in one of two styles, contingent upon the application prerequisites: wall mount or work area. A work area power adapter is intended to sit on the floor or a work area and is commonly formed like a block and has a power string standing out of one or furthest edges. A wall-mount power adapter has just a result string toward one side and incorporates power edges that jut from the body of its case to plug straightforwardly into an air conditioner wall attachment.

A wall mount power adapter kills the requirement for an air conditioner input line yet is restricted to being utilized with the style of AC wall attachment intended for a specific country except if it has a possibility for exchangeable AC plugs. A work area adapter might incorporate a hostage AC line and fitting, which would have a comparable limit to a wall mount adapter, yet most utilize a standard AC delta that can acknowledge different AC strings with connects well defined for whichever country which they will be utilized.

Most outer power adapters accessible today - both wall-mount and work area - can acknowledge a "general" AC input voltage of 90 to 264 volts AC (VAC). This voltage reach will uphold by far most of nations, with the need to match just the air conditioner input line or wall plugs for a particular country; the power adapter itself can be utilized generally. This element brings about store network effectiveness, and may try and bring about diminished item costs by utilizing volume fabricating.

The fundamental purposes behind an item designer to utilize an outer power adapter over an inner ("implanted") power supply in their framework are size decrease and simplicity of substitution. By utilizing an outer adapter, the actual item can be made more modest (albeit the power adapter itself adds size back to the total framework - no free snacks!) And an outside adapter can undoubtedly be supplanted by a client, without the requirement for help from an accomplished expert. The client basically has to guarantee that they have chosen an adapter that will work with their item.

How Do I Have at least some idea Which Outer Adapter to Utilize?
While picking an outside power adapter for any application, one should consider a couple of basic boundaries to guarantee that the adapter will perform successfully and securely:

AC Info Voltage
As recently referenced, most outer power adapters accessible today can acknowledge a "general" 90 to 264 VAC input voltage, which can uphold by far most of overall applications. In North America, homegrown outlets supply 110-120 VAC. In Europe, they supply 220-240 VAC. Convenient clinical applications might require an air conditioner input voltage as low as 85 VAC, and lighting applications frequently utilize a 277-205 VAC source. Note that a few modern and numerous foundation applications utilize a lot higher AC voltage range, which would require various sorts of power converters.

DC Result Voltage
An item or gadget that is powered by an outside power adapter requires a specific voltage, for the most part in a reach from as low as 3.3 VDC to as high as 56 VDC, to accurately work. An adapter should be chosen with the fitting matching DC yield voltage, which will be set apart on its name. Most adapters give a solitary DC yield, yet a few adapters give a few different result voltages (each with its power rating.) A determination of adapter models with standard result voltage augmentations are by and large accessible, and custom models with non-standard result voltages can be given from specific merchants.

Power Rating
One of the main outer power adapter determinations that is frequently ignored is its result power rating. An adapter's power rating is set apart on its mark, normally determined in Watts (W). This rating portrays the greatest power that can be dependably conveyed from the adapter to the item being powered. The power rating of the adapter should constantly be equivalent to or more noteworthy than the power that will be consumed by the item being powered. In any case, unfortunate outcomes, like diminished adapter lifetime, restricted execution, or complete loss of usefulness could happen.

It is essential to take note of that an adapter's power rating is for the most part characterized for use at room temperature. Activity at temperatures well over that - normally over 40-50 deg C (105 to 120 deg F) - may not help the full power rating. The datasheet for the adapter ought to incorporate a power derate over-temperature chart, which subtleties the greatest power that can be conveyed at given working temperatures.

Proficiency Rating
Ongoing business and industry guidelines command least degrees of power proficiency for outside adapter power supplies. For instance, in the US, the Division of Energy established a necessity that starting in 2016, all outer adapter power supplies brought into the U.S. market (with a couple of special cases, including adapters used to power FDA-endorsed clinical gadgets) should meet Level VI productivity necessities. Comparative orders exist in the European Association.

Adapters that meet these U.S. necessities are typically set apart with the roman numeral VI encased all around. More established plans set apart with roman numerals IV or V are not generally endorsed for U.S. market presentation. Numerous outside power adapter producers actually give arrangements that don't meet the new prerequisites, so it is essential to affirm what is required for a specific application and whether the power supply being considered adjusts to the relevant commands.

Connectors that are fitting for every application should be chosen for both the air conditioner input and the DC result of the outside adapter power supply. For the air conditioner input, a typical practice for work area adapters is to utilize an IEC320-C14 or - C8 channel, to which standard power strings with wall attachment plug closes reasonable for use in unambiguous nations can be independently connected. On the other hand, a hostage AC input string might be utilized, with a wall attachment plug well defined for a specific nation or country. Wall mount adapters will require fixed edges intended for the nation of purpose, or a determination of compatible cutting edges that can uphold various nations.

An incredible variety of DC power connectors are expected by the endless applications that can utilize outside power adapters. Framework planners will quite often pursue their own choices on what connector they like, and obliging practically most requests is typically clear. The most widely recognized standard DC connectors are female barrel plugs, which are two-conveyor (yield voltage and return) arrangements that are likewise accessible in different sizes.

The four primary boundaries that should be indicated for a barrel plug are internal breadth, external width, barrel length, and extremity - whether the middle contact is the result voltage (standard setup) or the return. Other barrel plug highlights incorporate whether there is a "locking" system, like a screw-on collet, to tie down the fitting to the jack on the gadget being powered. Different sorts of normal connectors incorporate multi-pin Commotions and "Molex" style pin/attachment repositories.

Safety Certifications
At long last, outer power adapters will require security confirmations well defined for the applications and nations wherein they will be utilized. There are different affirmation norms for clinical applications than there are for business/modern applications, and every nation or district requires its confirmations too. HGD offers adapters with one or the other clinical or wellbeing confirmations (and in some cases both), for standard use in the U.S., Canada, and the European Association. Extra country wellbeing confirmations, and accreditation to different norms, can be gotten upon demand.
